Raised floors - modular

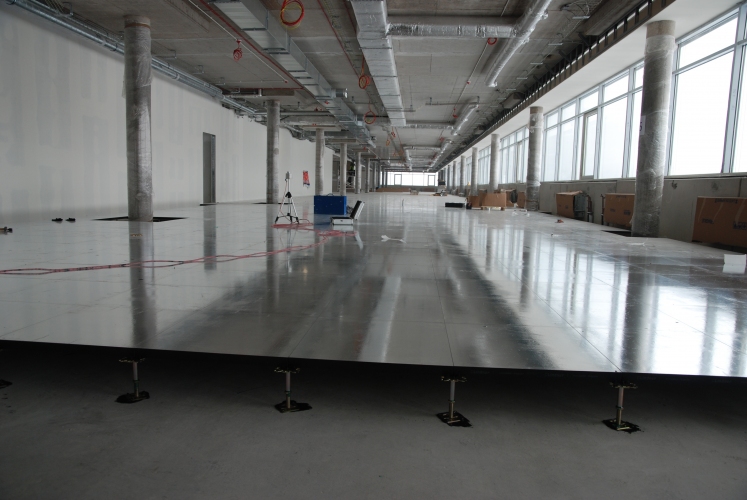

Modular raised floors are a compatible system of panels and their supporting structure.
The boards are the most important element of the raised floor. The quality, durability and stability of the floor mainly depend on them. The material they are made of (chipboard, gypsum-fiber board, cement-fiber board) determines such parameters as: reaction to fire, fire resistance, load-bearing capacity and acoustics.
The supporting structure is selected depending on the required floor height, the purpose of the room and the resulting loads. And this is:
System I – free-standing structure
System II – structure connected with steel crossbars – traverses
System III – structure connected with a screwed steel C40 / 40 / 2mm profile
Specification for light raised floor - TYPE I e.g. EHB 28
- Supporting structure: TYPE I – free-standing posts
- Board dimensions: 600 x 600 x ~ 17.4 mm
- Load class according to PN-EN 12825: 1 (2.0 kN)
- Permissible surface load: 10 kN / m2
- Deflection class according to PN-EN 12825: A (≤ 2.5 mm)
- Electrical resistance of floor leakage according to PN-EN 1081: Ru [Ω] 5 × 104< Ru < 1 × 109
- Safety factor according to PN-EN 12825: ≥ 2
- Core material: gypsum fiber
- Fire classification: non-flammable material
- Reaction to fire class according to PN-EN 13501 part 1: A1
- Acoustics according to EN ISO 140-12 ΔLw12 dB
Specification for Medium Raised Floor - Type II
- Factory applied boards with PVC lining
- Supporting structure: TYPE II – posts connected with steel crossbars – traverses
- Board dimensions: 600 x 600 x 36 mm
- Load class according to PN-EN 12825: 5 (5.0 kN)
- Permissible surface load: 25 kN / m2
- Deflection class according to PN-EN 12825: A (≤ 2.5 mm)
- Electrical resistance of floor leakage according to PN-EN 1081: Ru [Ω] 5 × 104< Ru < 1 × 109
- Safety factor according to PN-EN 12825: ≥ 2
- Core material: gypsum fiber
- Fire classification: non-flammable material
- Reaction to fire class according to PN-EN 13501 part 1: A1
- Fire resistance class according to PN-EN 13501 part 2: REI60
- Acoustics according to EN ISO 140-12 ΔLw: 17 dB
Specification of heavy raised floor - Type III, e.g. for server rooms
- Factory applied boards with PVC lining
- Supporting structure: TYPE III – twisted grate made of C40 / 40 / 2mm profiles
- Board dimensions: 600 x 600 x 36 mm
- Load class according to PN-EN 12825: 6 (6.0 kN)
- Permissible surface load: 30 kN / m2
- Deflection class according to PN-EN 12825: A (≤ 2.5 mm)
- Electrical resistance of floor leakage according to PN-EN 1081: Ru [Ω] 5 × 104< Ru < 1 × 109
- Safety factor according to PN-EN 12825: ≥ 2
- Core material: gypsum fiber
- Reaction to fire class according to PN-EN 13501 part 1: A1
- Fire resistance class according to PN-EN 13501 part 2: REI60
- Acoustics according to EN ISO 140-12 ΔLw: 17 dB
